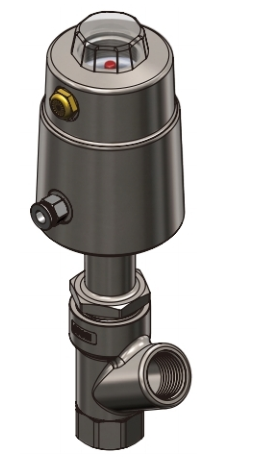

Y-Filling Angle Valve
Widely used in filling machinery and suitable for filling viscous,paste-like materials that are easy to
bubble if the extension rod filling is increased.
Characteristic
The filling head is sealed at the bottom,able to quickly cut off filling drips.
Filling is rapid,stable and precise.
The filling head is chamfered and tapered,with guiding and positioning effect,
and can be submerged for filling.
Technical Parameter
| Technical Parameters: | |||||
| Medium | neutral water gas oil(WOG) | ||||
| Size | DN15 | ||||
| Valve body | angled valve body,right angle valve body,T-connected valve body,T-reversing valve body,Y-filling valve body,regulating valve body | ||||
| Connection | Female thread | ||||
| Pressure range | 0-16bar | ||||
| Body material | CF3M/CF8/2205/HC | ||||
| Body material | PTFE(standard option),TFM1600,POB | ||||
| Medium temperature | .-10℃+180℃(or able to reach 220℃ at most with optional accessory) | ||||
| Environment temperature | .-10℃+80℃ | ||||
| Air supply pressure | 4-10bar | ||||
| Pneumatic Connector | DN10-50 G1/8-8mm DN65-100 G1/4-8mm plastic hose connector | ||||
| Failure Position | in case of air supply loss,the valve will be closed at FC(NC is the standard option) | ||||
| service life of actuator | Normally 400,000 times;able to work in humid and corrosive environment.The sealing parts inside the actuator are resistant to high temperature.When used together with a regulating cone,the valve can be treated as a regulating valve. | ||||
| Optional accessory | manual-pneumatic actuator,mechanical limit,contact position feedback,capacitive inductive position feedback,solenoid valve,electrical adjustment positioner,etc | ||||
