Plastic Pneumatic Right Angle Valve
Applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.
Equipped with a stainless steel pneumatic actuator;can be used in harsh environments.Resistant to UV light,with a service life longer than plastic or aluminum pneumatic actuator.
The exterir of food and pharmaceutical equipment needs to be cleaned.Stainless steel pneumatic actuator can resist corrosive cleaning agents,designed to meed GMP standards and easy to clean.

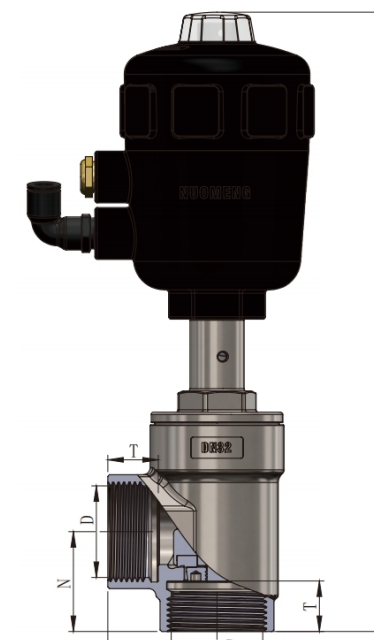

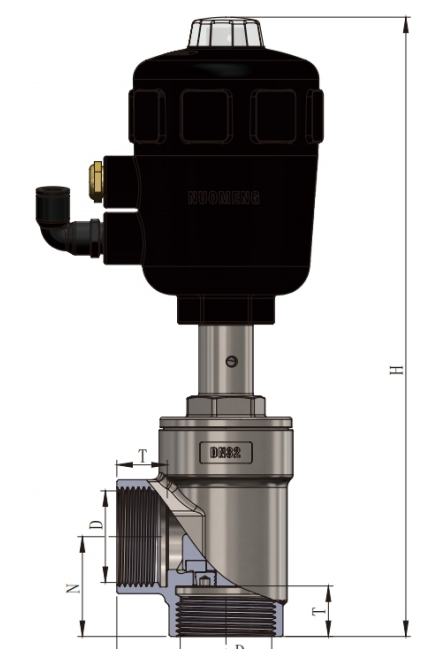

Technical Parameter
| SIZE | T | L | N | H | |||
| DN | D | Rc | NPT | G | |||
| DN8 | 1/4 | 10 | 10 | 10 | 28 | 27.5 | 208.6 |
| DN10 | 3/8 | 11 | 11 | 11 | 28 | 27.5 | 208.6 |
| DN15 | 1/2 | 13.2 | 13.7 | 14 | 28 | 27.5 | 209.9 |
| DN20 | 3/4 | 14.5 | 14 | 16 | 34 | 35 | 247.7 |
| DN25 | 1 | 16.8 | 16.8 | 18 | 40 | 37.8 | 276.8 |
| DN32 | 1 1/4 | 19.1 | 17.3 | 18 | 46.5 | 42.5 | 282 |
| DN40 | 1 1/2 | 19.1 | 17.3 | 18 | 50 | 45.2 | 284.7 |
| DN50 | 2 | 23.4 | 17.6 | 24 | 61 | 58.6 | 363 |
| DN65 | 2 1/2 | 26.7 | 23.7 | 26 | 73 | 70.8 | 394.5 |
| DN80 | 3 | 29.8 | 25.8 | 28 | 81 | 75.3 | 405.2 |
| Rc(ISO7-1),NPT(ASME B 1.20.1),G(DIN ISO 288-1) | |||||||
