Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products
Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products
Stainless Steel Pneumatic Clamped Angle Seat Valve

Applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.

Equipped with a stainless steel pneumatic actuator;can be used in harsh environments.Resistant to UV light,with a service life longer than plastic or aluminum pneumatic actuator.

The exterir of food and pharmaceutical equipment needs to be cleaned.Stainless steel pneumatic actuator can resist corrosive cleaning agents,designed to meed GMP standards and easy to clean.

Characteristic

Feature:

1.It have valve open or close position display.

2.pneumatic guide outside ,can prolong the service life,maintenance free.

3.It have self-regulation sealing gland between overfall and slider,can improve sealing property.

4.The structure of angle seat valve body,can  achievable mass flow (especailly compare with normal stop valve),

compact structure response is fast.

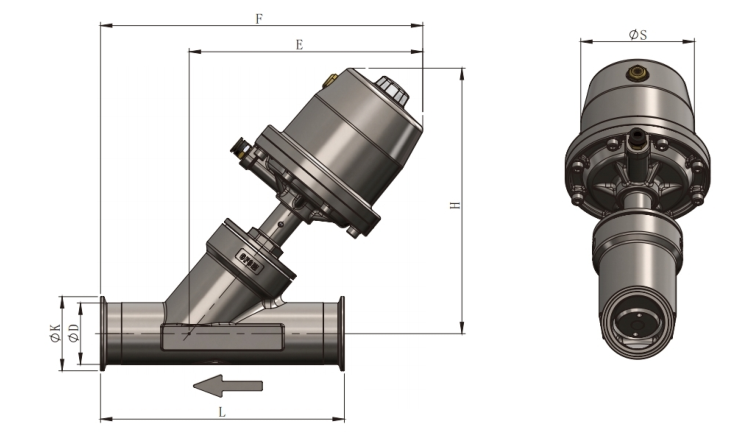

Technical Parameter


SIZE D*K L S E F H
DN NPS DIN11850-1 DIN11850-2 ISO2037/ISO1127 BS4825 3A/ASME-BPE
DN6 0.25" 8*34 8*34 6.35*25 6.35*25 100 61 137 175 148
DN8 0.375" 10*34 10*34 9.53*25 9.53*25 100 61 137 175 148
DN10 0.5" 12*34 13*34 12.7*25 12.7*25 100 61 137 175 148
DN15 0.75" 18*34 19*34 19.05*25 19.05*25 100 61 137 175 148
DN15Max 0.75" 18*50.5 19*50.5 19.5*50.5 19.05*50.5 120 61 137 185 148
DN20 / 22*34 23*34 21.3*50.5 / 140 61 137 195 148
DN25 1.0" 28*50.5 29*50.5 25.4*50.5 25.4*50.5 140 61 133 190 149
DN32 1.25" 34*50.5 35*50.5 31.8*50.5 / 160 74.5 160 224 180
DN40 1.5" 40*50.5 41*50.5 38.1*50.5 38.1*50.5 175 74.5 164 232 184
DN50 2" 52*64 53*64 50.8*64 50.8*64 210 100 202 278 229
DN65 2.5" 70*91 70*91 63.5*77.5 63.5*77.5 210 100 202 278 229
DN80 3" / / 76.2*91 76.2*91 230 120 252 335 295
DN80Max 3.5" 85*106 85*106 88.9*106 / 249 150 293 376 328
DN100 4" 104*119 104*119 101.6*119 101.6*119 260 150 318 398 357
/ / DN DN NPS NPS / / / / /
