Applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.
Components include an advanced pneumatic actuator,engineering plastic housing ,low friction brassnickel-plated piston and internal self-lubricating elements.Maintenance-free;able to rotate by 360°。
Can be connected with a solenoid valve via NAMUR interface.Normally divided into three types:normally closed,normally open and double-acting.
Feature：
1.It have valve open or close position display.
2.pneumatic guide outside ,can prolong the service life,maintenance free.
3.It have self-regulation sealing gland between overfall and slider,can improve sealing property.
4.The structure of angle seat valve body,can achievable mass flow (especailly compare with normal stop valve),compact structure response is fast.

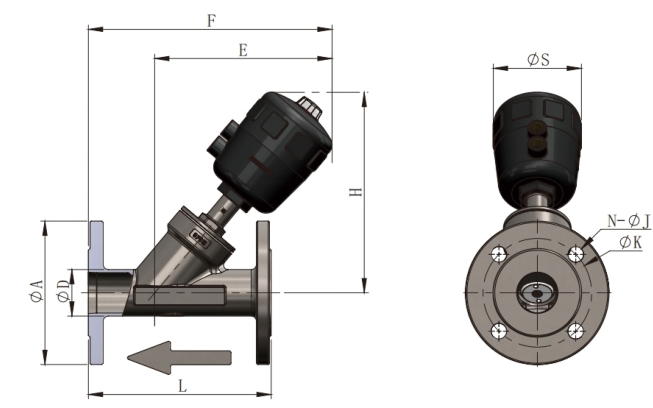

| SIZE | D*T | L | S | A | N-J | K | E | F | H | ||||
| DN | NPS | DIN11850-1 | DIN11850-2 | ISO2037/ISO1127 BS4825 | 3A/ASME-BPE | ||||||||
| DN10 | 0.5" | 12*1.5 | 13*1.5 | 12.7*1.5 | 12.7*1.65 | 120 | 65 | 90 | 4-14 | 60 | 138 | 174 | 148 |
| DN15 | 0.75" | 18*1.5 | 19*1.5 | 19.05*1.5 | 19.05*1.65 | 120 | 65 | 95 | 4-14 | 65 | 138 | 174 | 148 |
| DN20 | / | 22*1.5 | 23*1.5 | 21.3*1.5 | / | 120 | 65 | 105 | 4-14 | 75 | 138 | 174 | 148 |
| DN25 | 1.0" | 28*1.5 | 29*1.5 | 25.4*1.5 | 25.4*1.65 | 140 | 65 | 115 | 4-14 | 85 | 136 | 178 | 152 |
| DN32 | 1.25" | 34*1.5 | 35*1.5 | 31.8*1.5 | / | 155 | 80 | 140 | 4-18 | 100 | 170 | 219 | 190 |
| DN40 | 1.5" | 40*1.5 | 41*1.5 | 38.1*1.5 | 38.1*1.65 | 170 | 80 | 150 | 4-18 | 110 | 172 | 220 | 192 |
| DN50 | 2" | 52*1.5 | 53*1.5 | 50.8*1.5 | 50.8*1.65 | 190 | 100 | 165 | 4-18 | 125 | 204 | 260 | 231 |
| DN65 | 2.5" | 70*2.0 | 70*2.0 | 63.5*2.0 | 63.5*1.65 | 190 | 100 | 185 | 8-18 | 145 | 203 | 254 | 235 |
| DN80 | 3" | / | / | 76.2*2.0 | 76.2*1.65 | 230 | 125 | 200 | 8-18 | 160 | 261 | 334 | 304 |
| DN80Max | 3.5" | 85*2.0 | 85*2.0 | 88.9*2.0 | / | 249 | 158 | 200 | 8-18 | 160 | 302 | 385 | 336 |
| DN100 | 4" | 104*2.0 | 104*2.0 | 101.6*2.0 | 101.6*2.11 | 280 | 158 | 220 | 8-18 | 180 | 329 | 409 | 368 |
| / | / | DN | DN | NPS | NPS | / | / | / | / | / | / | / | / |
