Applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.
Components include an advanced pneumatic actuator,engineering plastic housing,low friction brass nickel-plated piston and internal self-lubricating elements.Maintennance-free;able to rotate by 360°.
Can be connected with a solenoid valve via NAMUR interface.Normally divided into three types:normally closed,normally open and double-acting.
Feature：
1.It have valve open or close position display.
2.pneumatic guide outside ,can prolong the service life,maintenance free.
3.It have self-regulation sealing gland between overfall and slider,can improve sealing property.
4.The structure of angle seat valve body,can achievable mass flow (especailly compare with normal stop valve),
compact structure response is fast.

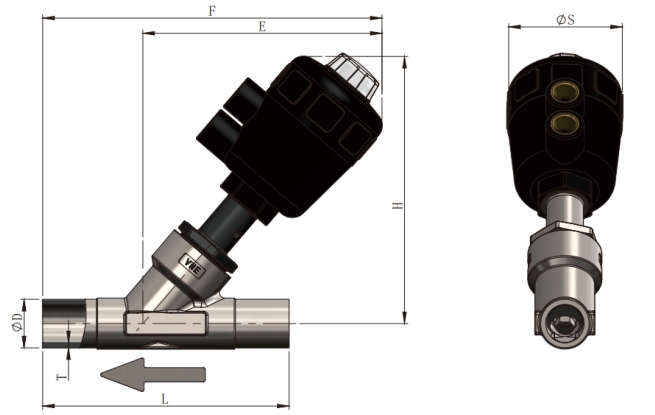

| SIZE | D*T | L | S | E | F | H | ||||
| DN | NPS | DIN11850-1 | DIN11850-2 | ISO2037/ISO1127 BS4825 | 3A/ASME-BPE | |||||
| DN6 | 0.25" | 8*1.0 | / | 6.35*1.0 | 6.35*0.89 | 100 | 65 | 137 | 175 | 148 |
| DN8 | 0.375" | 10*1.0 | / | 9.53*1.0 | 9.53*0.89 | 100 | 65 | 137 | 175 | 148 |
| DN10 | 0.5" | 12*1.5 | 13*1.5 | 12.7*1.5 | 12.7*1.65 | 100 | 65 | 137 | 175 | 148 |
| DN15 | 0.75" | 18*1.5 | 19*1.5 | 19.05*1.5 | 19.05*1.65 | 100 | 65 | 137 | 175 | 148 |
| DN20 | / | 22*1.5 | 23*1.5 | 21.3*1.5 | / | 120 | 65 | 137 | 185 | 148 |
| DN25 | 1.0" | 28*1.5 | 29*1.5 | 25.4*1.5 | 25.4*1.65 | 120 | 65 | 136 | 183 | 152 |
| DN32 | 1.25" | 34*1.5 | 35*1.5 | 31.8*1.5 | / | 140 | 80 | 170 | 224 | 190 |
| DN40 | 1.5" | 40*1.5 | 41*1.5 | 38.1*1.5 | 38.1*1.65 | 155 | 80 | 172 | 230 | 192 |
| DN50 | 2" | 52*1.5 | 53*1.5 | 50.8*1.5 | 50.8*1.65 | 190 | 100 | 204 | 270 | 231 |
| DN65 | 2.5" | 70*2.0 | 70*2.0 | 63.5*2.0 | 63.5*1.65 | 190 | 100 | 204 | 270 | 235 |
| DN80 | 3" | / | / | 76.2*2.0 | 76.2*1.65 | 230 | 125 | 261 | 344 | 304 |
| DN80Max | 3.5" | 85*2.0 | 85*2.0 | 88.9*2.0 | / | 249 | 158 | 302 | 385 | 336 |
| DN100 | 4" | 104*2.0 | 104*2.0 | 101.6*2.0 | 101.6*2.11 | 260 | 158 | 329 | 409 | 368 |
| / | / | DN | DN | NPS | NPS | / | / | / | / | / |
