Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products
Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products

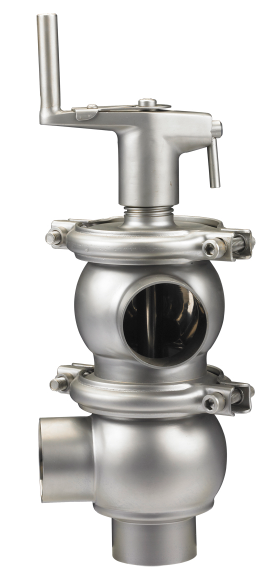

Manual welded reversing valve

The series of valve are major let the medium reach the purpose of reversing or end stop,because

the good sealablity and cleanbility,they are extensively use to different sanitary industry areas.

Working principle

          The series of pneumatic cut-off reversing valve change the energy which process by compressed

air to the mechanical energy,the mechanical energy can drive the valve rod axial moving,thus move the

different location of seal elements,which can control the switch for inlet of pipeline,finally realise the purpose

of medium reversing or stop.


          The manual cut-off reversing valve series control by  handle,also reach the purpose of medium reversing

or stop at the end.

Characteristic

Various standards of valves can be provided to clients:DIN,3A,SMS,ISO/IDF,BS/RJT,ASME/BPE etc。


The series of valve have two types valves,that is the cut-off type and reversing type,the cut-off

type can made of two or three pipeline connector,the reversing valve can made of three to five

pipeline connector,their variety fully satisfied the needed of market.

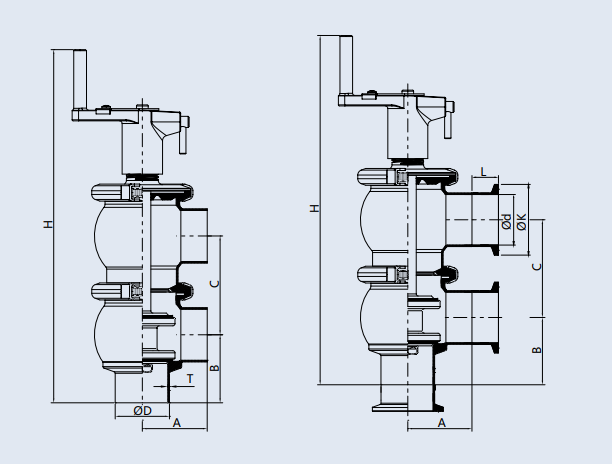

Technical Parameter


SIZE D*T H A B C
DIN DIN11850-2 ISO/SMS 3A/BPE
DN25 1" 28*1.5 29*1.5 25.4*1.5 25.4*1.65 320.0 68.0 62.0 93.0
DN32 1 1/4" 34*1.5 35*1.5 31.8*1.5 / 320.0 68.0 62.0 93.0
DN40 1 1/2" 40*1.5 41*1.5 38.1*1.5 38.1*1.65 320.0 68.0 62.0 93.0
DN50 2" 52*1.5 53*1.5 50.8*1.5 50.8*1.65 320.0 68.0 62.0 93.0
/ 2 1/2" 70*2.0 70*2.0 63.5*2.0 63.5*1.65 / / / /
DN65 3" / / 76.2*2.0 76.2*1.65 / / / /
DN80 / 85*2.0 85*2.0 88.9*2.0 / / / / /
DN100 4" 104*2.0 104*2.0 101.6*2.0 101.6*2.11 / / / /
