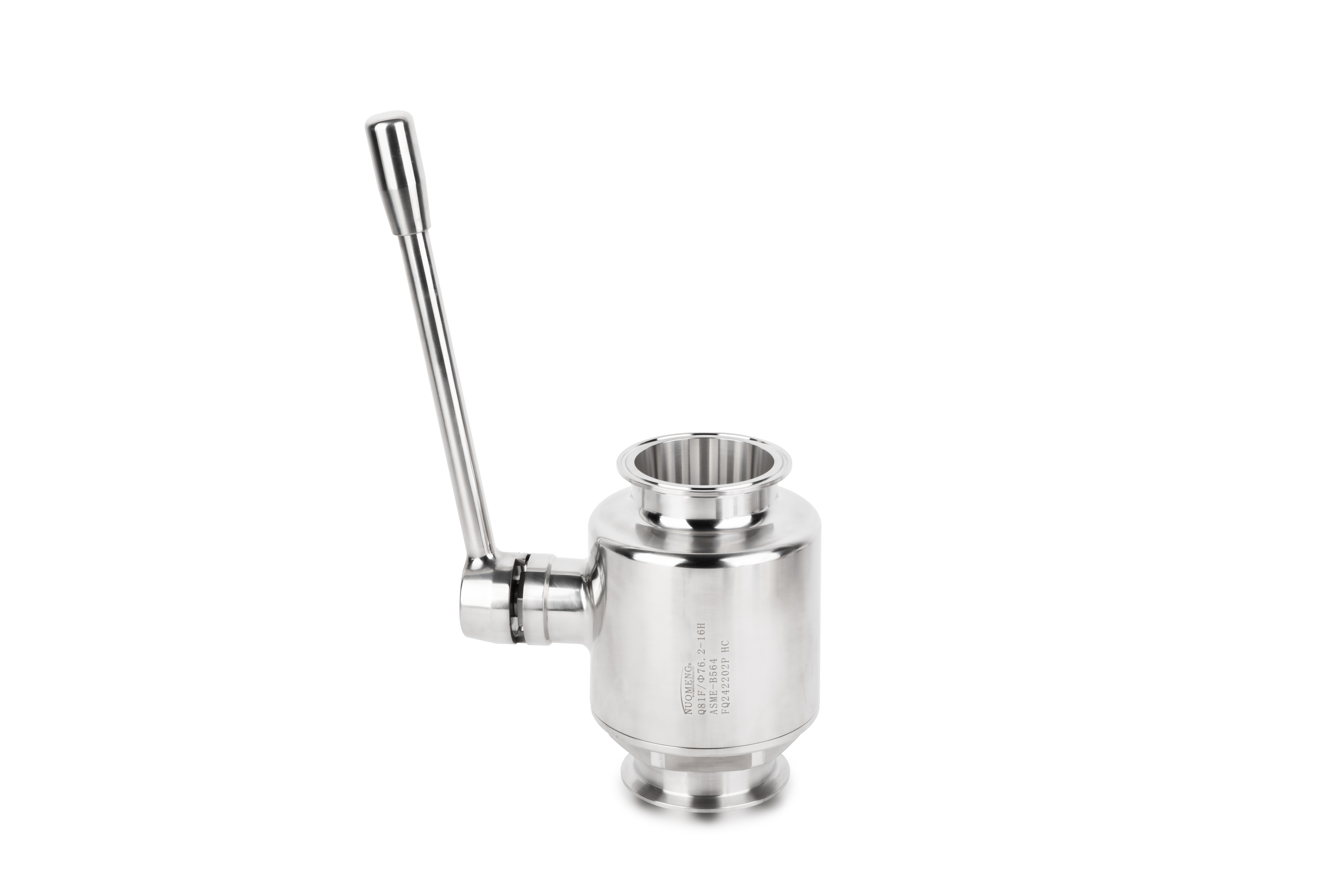

To be applied in pharmaceutical industries and chemical equipment:pressure vessel,seawater treatment equipment,seawater heat exchanger,papermaking machine,sulfuric acid/nitric acid equipment.
To be applied in food industry:soy sauce,cooking wine,salt equipment.
To be used for controlling the flow of fluids with viscous or particulate matters;available with automatic or manual actuationmanners.
Products are mechanically polished until the surface is smooth and clean.Media can be completely drained,leaving no risk of contamination.
防脫出閥桿設計，保證最大程度的安全。
Blow-out proof stem adds safety and reliability to the full extent.
閥桿密封填料加厚多層V 型堆疊設計帶可調自補償裝置。
Thickened stem packing;V-shaped stacking design;Adjustable self-compensating gland.
密封點設置在閥蓋螺紋前端，介質不會滯留在閥蓋連接螺紋間隙內。
The sealing point is above the thread of valve cap,so media won't accumulate in the clearance of threads.
所有接液面密封材料采用增強型PTFE符合FDA177.1550 以及GMP 要求。
All sealing materials contacting with fluids are reinforced PTFE,in accordance with FDA177.1550 and GMP standards.
支持CIP在線清洗以及SIP 高溫滅菌。
Support CIP (Clean-In-Place)and SIP (Sterilization-In-Place).

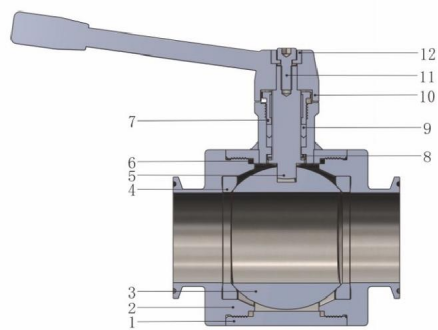

Number
Name
Material
1
Valve Body
SS/HC/Ti
2
Valve Cap
SS/HC/Ti
3
Ball Core
SS/HC/Ti
4
Body sea
PTFE
5
Valve stem
SS/HC/Ti
6
Cap seal
PTFE
7
Press nail
304
8
Ring
PTFE
9
V-seal components
PTFE
10
Handle
304
11
Screw
304
12
Cover Plate
304
Note:The material of each part may be diferent under different working conditions.The specific materialshall prevail.
|
TechnicalParameters |
|
|
Actuation |
Stainless steel stem,aluminum pneumatic actuator (single/double acting),electric actuator |
|
Size |
DN10-DN100 |
|
Body |
manual body,pneumatic body |
|
Fluid-Contacting Surface |
SS/HC |
|
Non-Fluid-Contacting Surface |
SS |
|
Connection |
Welded,Clamped,Flange,Thread,etc. |
|
Operation Pressure |
DN10-DN100 PN10bar |
|
Operation Temperature |
Dependent on sealmaterials |
|
Fluid-contacting surface roughness:≤Ra0.6μm≤Ra0.25μm |
|
|
External surface roughness:Ra≤0.8 μm以及≤0.4μm |
|
