Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products
Products
Professional development, design, production and sales of ASME-BPE, high-end
Pipe fittings, valves, aseptic diaphragm valves, aseptic tank bottom valves and other high-end products

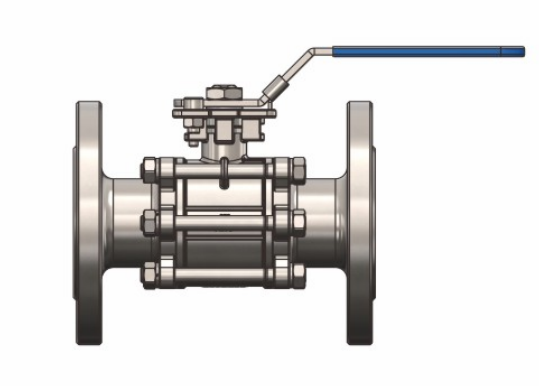

Pneumatic Three-piece flange ball valve  (Q01.7)

Can be applied in food,beverage,brewing,dairy,water treatment, pharmaceutical and chemical industries,with an intended purpose of controlling the flow of fluids with viscous or particulate matters in pipelines or pressure vessels.

Processed by state-of-the-art equipment in workshops.

Best service is provided.

Inspected by a professional quality control team.

Best quality is guaranteed.

With experiences accumulated through years and deep talks conducted between end users of fluid pipelines,we are able to continuously optimize the design and structure of ball valves.

Valve bodies and caps are delicately cast by CF8,CF3M or 2205 materials;or forged by F316L.In case of specific working condtions,special materials,such as HC/Ti,will also be applied.

Characteristic

3-PCS  ball  valves  are  flexible  to  set  up  and easy to be maintained online  or  offline,which significantly  minimizes  the  production downtime  due to valve or pipeline  maintenance.

During maintenance,it is not  necessary  to disassemble  the actuator  or  joint component  from  the valve.When  the  maintenance  is  completed,it  is also convenient  to  re-amount  the  valve  or  actuator  components; no  calibration  is  needed.

Blow-out proof stem adds safety and reliability to the full extent.

Thickened stem packing;V-shaped stacking design;Adjustable self-compensating gland.

Muliple control modes.Easy to realize remote or automatic control.

All sealing materials contacting with fluids are reinforced PTFE,in accordance with FDA177.1550 and GMP standards.

Support   CIP(Clean-In-Place)and   SIP   (Sterilization-In-Place).

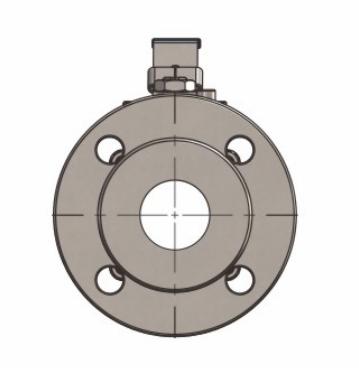

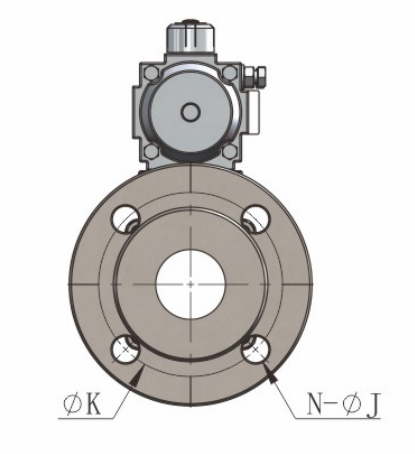

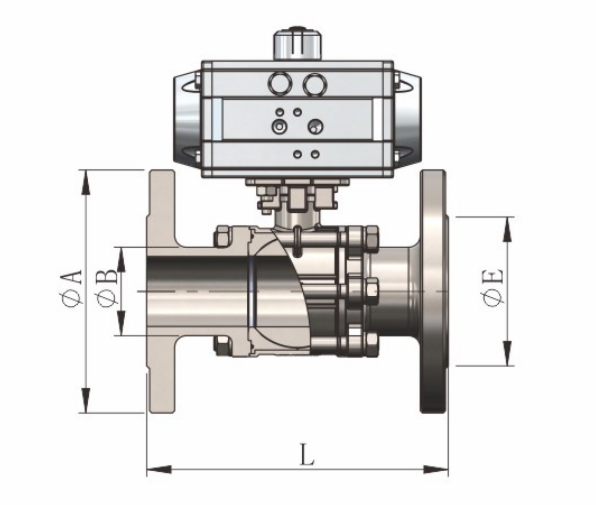

Technical Parameter


SIZE

 A

B

 C

 E

N-J

K

L

    GB12459-A

     GB12459-B

    DIN11850-1

    DIN11850-2

DN10

90

17.2

14

12

13

10

40

4-14

60

170

DN15

95

21.3

18

18

19

16

45

4-14

65

170

DN20

    105

26.9

25

22

23

20

58

4-14

75

190

DN25

115

33.7

32

28

29

25

68

4-14

85

210

DN32

140

42.4

38

34

35

32

78

4-18

100

210

DN40

150

48.3

45

40

41

38

88

4-18

110

210

DN50

165

60.3

57

52

53

50

102

4-18

125

230

DN65

185

76.1

76

70

70

65

122

8-18

145

270

DN80

200

88.9

89

85

85

80

138

8-18

160

280

    DN100

220

114.3

108

104

104

      100

      158

       8-18

      180

      300

DN125

250

139.7

133

129

129

125

188

8-18

210

356

DN150

285

168.3

159

154

154

150

211

8-22

240

394




Technical Parameters:

Actuatior

     stem,auto-reset stem,turbine,aluminum pneumatic actuator(single/double acting), electric actuator

Size

    DN10-DN100     1/2"-4"

Body

    one-channel body,tank bottom type body,V-shaped regulating body

Fuid-Contacting Surface

    ASTM A351:CF8/CF3M/2205 (304/316L/2205)

 Non-Fluid-Contacting Surface

    ASTM    SS304/CF8

Connection

    Welded,Clamped,Flange,Female Thread,etc

Operation Pressure

    PN16bar

Operation   npe ture

    Dependent on seal materials

Seal Material

    Ambient Temperature(0~+110 ℃):PTFE seal

    Medium Temperature (-60~+150℃):TFM1600 seal

    High temperature(-10~+210℃):POB seal

    Fluid-contacting surface roughness:Ra≤0.8μm   Ra≤0.4μm    Ra≤0.25μm

Optional Accessory (Pneumatic)

    Handwheel Clutch (Onlyavailable for aluminum pneumatic actuators)

Optional Accessory(Transponder)

    APL210N:IP67 2-NPT1/2"

    VLS1000:Exd IIBT6  IP67 2-NPT3/4”

    VLS1000S:Exd II CT6  IP67 2-NPT3/4"

    VLS1121:Exia IICT6   IP672-NPT3/4"

    VLS1221:Exia II CT6 P&FIP67 DC 8V本安防爆2-NPT3/4"

  Ootional Accessory(Solenoid Valve)

    Solenoid valve+air filter pressure-relief valve(plastic connector +PU air pipe) AC220VAC110VAC380

    Explosion-proof solenoid valve+air filter pressure-relief valve (pipe ferrule +stainless steel air pipe)DC12V DC24V

    ASCO Explosion-proof solenoid valve+air filter pressure-relief valve (pipe ferrule + stainless steel air pipe)DC12V DC24V

    Optional Accessory:NM500  Intelligent Positioner:set input signal at 4-20mA and output signal at 4-20mA DC 24V

    Optional Accessory:NM600 Intelligent Positioner:set input signal at 4-20mA and output signal at 4-20mA DC 24V Explosion-proof level:Ex ia IIC T4/T6 Ga
