Products
Click to select »
Manual Right Angle Valve
Applied on equipment in beer & beverage,printing and textile,gaseous,pharmaceutical and medical,chemical,high-temperature sterilization/foaming,and water treatment industries,etc.

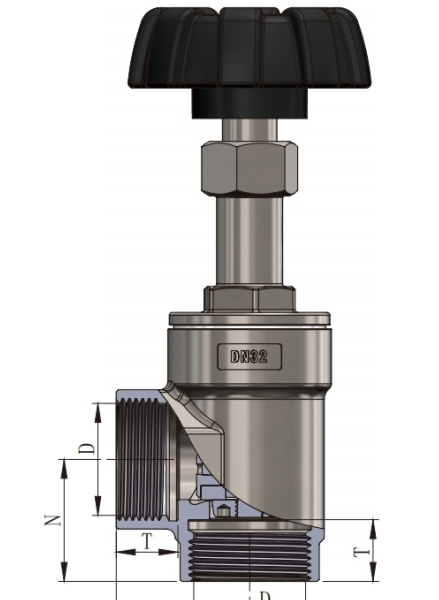

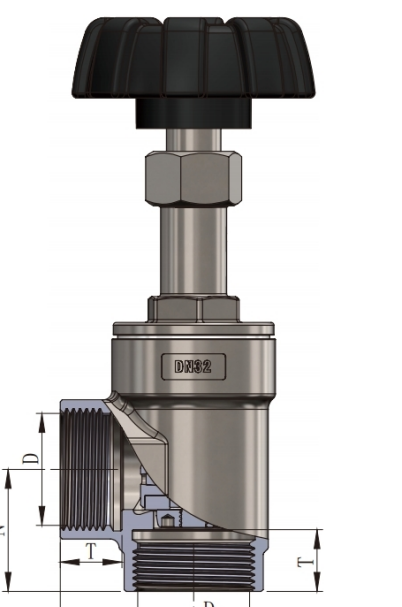

Technical Parameter
| SIZE | T | L | N | |||
| DN | D | Rc | NPT | G | ||
| DN8 | 1/4 | 10 | 10 | 10 | 28 | 27.5 |
| DN10 | 3/8 | 11 | 11 | 11 | 28 | 27.5 |
| DN15 | 1/2 | 13.2 | 13.7 | 14 | 28 | 27.5 |
| DN20 | 3/4 | 14.5 | 14 | 16 | 34 | 35 |
| DN25 | 1 | 16.8 | 16.8 | 18 | 40 | 37.8 |
| DN32 | 1 1/4 | 19.1 | 17.3 | 18 | 46.5 | 42.5 |
| DN40 | 1 1/2 | 19.1 | 17.3 | 18 | 50 | 45.2 |
| DN50 | 2 | 23.4 | 17.6 | 24 | 61 | 58.6 |
| DN65 | 2 1/2 | 26.7 | 23.7 | 26 | 73 | 70.8 |
| DN80 | 3 | 29.8 | 25.8 | 28 | 81 | 75.3 |
| Rc(ISO7-1),NPT(ASME B 1.20.1),G(DIN ISO 288-1) | ||||||
