Application:
This type of valve series are designed to use before and after doing sterillize treatment.
Standard Design:

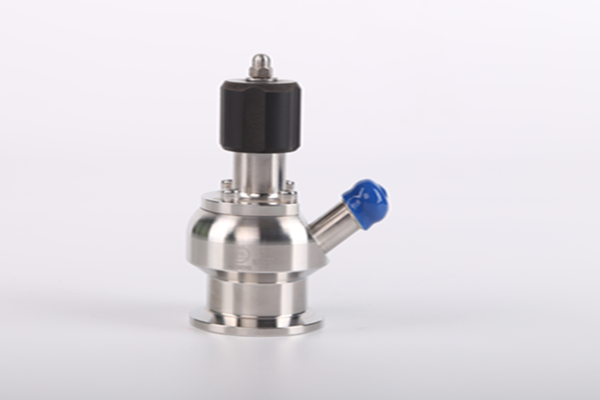

The component of sterile sample valve included three parts:one valve body,one valve head
and one piece diaphragm .Rubber diaphragm valve is putted in the central spindle of valve head,
and use as a continual central spindle.
Open valve:Sampling
To open valve can through rotary handle (adjust type valve)or switch lever(open or close valve).When the central
spindle and diaphragm have opened ,the fluid can through sample valve.
Close valve:Sterilization sample
Reverse operation handle ,built-in spring can close valve ,meanwhile can keep the passageway through between the
hosepipes,so that doing sterilization treatment.If need use the steam,we suggest the customer installe a small type of
pressure adjust vavle in the outlet.
Technical Date:
Pressure
Max:working pressure on the valve seat(close valve):1000KPa
Max:working pressure on the valve cover(open valve);rubber material 500KPa ,stainless steel material 1000KPa
Temperature
Max.sterilization temperature,dry steam:121-134℃。steam must be use dry ,because the condensate water will damage
the diaphragm.We suggeste to customer,after 100 times sampling or sterilization,should replace the diaphragm.
